Wilson Foreman Livestock

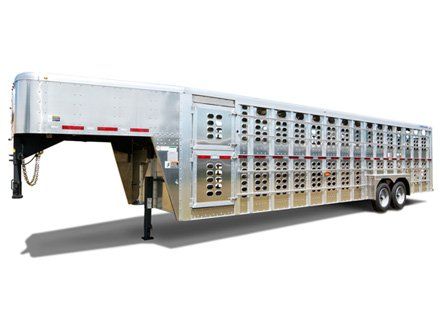

Wilson Foreman Gooseneck Livestock Trailer
Standard Features
- Gross Vehicle Weight Rating: 16,000, lb., 20,000 lb., 25,000 lb. GVWR
- Lengths: 16 Ft to 32 Ft in 2 Ft increments with corresponding increases in GVWR, plus 7 Ft gooseneck.
- Width: 84″, 90″, 93″, and 99″ inside widths.
- Height: 5’5″, 6’0″, 6’8″, 7’0″, and 7’6″ inside heights.
- Coupler: 2-5/16″ diameter ball-type with adjustable coupler height.
- Spare Tire Carrier: Curb side front drop.
- Sides: Side patterns A, C, D, F, etc.
- Floor: .110″ thick aluminum tread plate with 3 longitudinal corrugations. Crossbars on 12″ centers.
- Landing Gear: 12,000 lb. drop leg with high speed crank
- Roof: One-piece, stretched aluminum.
- Rear End: Choice of styles A through F.
- Brakes: Electric, Vac/Hyd, or Elec/Hyd.
- Brake Brake-away Kit: Accidental disconnect safety feature.
- Axles: 7,000 lb., 8,000 lb., or 10,000 lb. rubber torsion.
- Wheels: (4) 6.00 x 16 8-lug, or (4) 6.75 x 17.5 8-lug.
- Tires: (4) 235/85R16 10-ply, 215/75R17.5 16 ply rated at 4805 #’s, or 235/75R17.5 16 ply rated at 6085 #’s.
- Side Door: (1) with lock rod latch, located on driver’s side.
- Lights: Meets or exceeds I.C.C. standards.
- Interior Lights:
- (1) Interior light on 22′ models or shorter.
- (2) Interior lights on 24′ models or longer.
- (2) Interior lights on 22′ models and longer with deck rail.
- (4) Interior lights on 24′ models and shorter with deck rail.
- Header: Extruded Aluminum.
- Rub Rail: Extruded Aluminum with horizontal protective lip.
- Finish: Steel painted silver, all aluminum left natural
