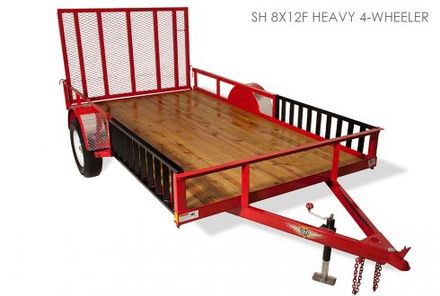

H&H ATV Single Trailer

Built with a 4″ channel tongue
15″ tall angle iron ladder rail sides – 2″ x 2″ x 3/16″ angle
2″ x 3″ x 3/16″ angle crossmembers (approximately 24″ on center)
2″ A-frame coupler with safety chains
2K Swivel-up jack
Single fenders with combination step & license plate bracket and ATP rock guard on fender fronts
LED lighting with 4-prong electrical plug
Enclosed wiring in an innovative steel wiring channel
#1 grade treated wood floor

4′ tall mesh ramp gate with radius corners and J-hook latches – 1,500lb rating
(2) 5′ x 2″ channel ramps – stores on side of trailer and doubles as side rail – 1,000lb rating per ramp – opening is 58″ wide
3,500lb idler axle with EZ-Lube hubs – 2,990lb GVWR – NO brake
ST205/75R15 C rated radial tires on 6-bolt white wheels
Powder Coat Finish – Standard Gloss Colors – CAT Black, Smoke Grey, Carmine Red, Mellon Yellow, & John Deere Green
D-rings – number varies by trailer length
