Titan Tandem Flatbed Trailer
Standard Features
- 7000# Torsion Dexter Axles with 8 Bolt Hubs
- Provider 235/R16 - 10 Ply Tires
- Provider 235/R16 - 10 Ply Spare Tire
- Treated 2"X8" Floor Boards (up to 24' no Splice)
- Electric Brakes on all 4 Wheels
- Chain Box Under Deck
- Side Braces From Frame to Floor
- Breakaway Battery Box with Charger and Tester
- 2-5/16" Adjustable Gooseneck Coupler
- Channel Iron Rub Rail w/ Stake Pockets & 5/16" Flat
- 3" Channel Crossmembers on 16" Centers
- Coated Inner Frame Under Floor
- 7 Prong Heavy Cord
- Binkley Spring Loaded Dual Pin Jack
- Loading Jacks at Rear
- Stem Made with Same I-Beam as Frame
- Safety Chains and Hooks
- Sealed Beam Recessed LED Lights
Optional Features
-Call for Option Pricing

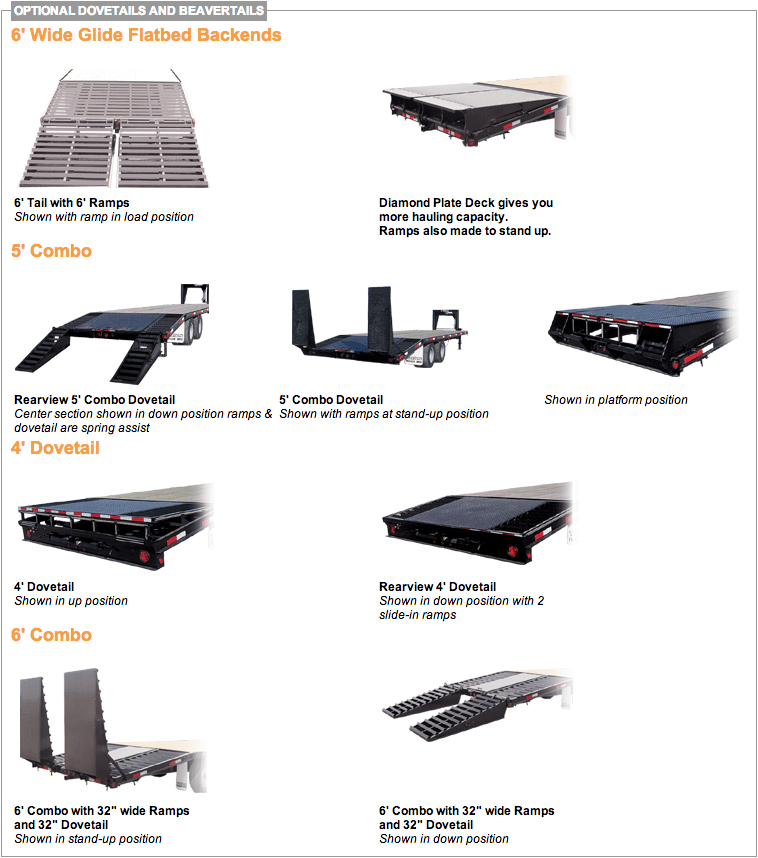

- 6' Wideglide w/ 2-48" Spring Loaded Flip Over Ramps
- 5' Combo Dovetail w/ 2 Flip Over Ramps and Pop Up Center
- 4' Lift Up Dovetail w/ Slide In Ramps
- 9' Hydraulic Dovetail
- Steel Floor
- Rubber Composite Flooring (inc 12" Crossmembers)
- Blackwood Rubber Infused Lumber
- 12" Crossmembers on Floor
- Oak Floor
- Winch Plate
- 12,000# Warn Winch
- Headrack
- Extra Step and Grab Handle
- Heavy Duty D-Ring
- Extra Stake Pockets
- 4" Bolt or Weld On Ratchets
- Pierced Frame Low Deck
- Stationary Flatbed Over Stem
- 8' Wide
- Delete Wood Floor
- Pintle Hitch
- Kingpin in lieu of Standard Coupler
- Raised Stem
- Straight Neck Stem in lieu of Ruff Neck
- Wheel Well Supports
- Triple 7000# Torsion Axles
- 8000# Torsion Axles
- Triple 8000# Torsion Axles
- Spring Axle
- Oil Bath Axle
- Electric Over Hydraulic Drum Brakes
- Disc Brakes in lieu of Drum Brakes
- Upgraded I-Beam
- Heavy Duty Ramps
- Chainbox in A-Frame
- Chainbox w/ Lid Between Double Jacks
- Chain Rack
- Toolbox on Side Under Deck
- Mid Mount LED Turn Signals
- Semi Plug with Double Tail Lights
- Double Tail Lights
- Wire Plug to Receiver Hitch
- 14 Ply Tires
- 215/75R17.5 16 Ply Tires
- 235/75R17.5 18 Ply Tires
- Aluminum Wheels
- Double Jacks
- Single 2-Speed Jack
- Double 2-Speed Jacks
- Single Bigfoot Hydraulic Jack
- Double Bigfoot Hydraulic Jacks
- 12,000# Jack at Each Corner (Straight Deck Only)
Notes:
- Torsion Axle Trailers 16′ to 26′ in Total Length will have 14# I-Beam
- Torsion Axle Trailers 27′ and Longer in Total Length will have 16# I-Beam
- Tandem Axle Trailers 29′ to 32′ in Total Length will have 1 - 8" Torque Tube and 1 Heavy I-Beam Crossmember
- Tandem Axle Trailers 33′ to 36′ in Total Length will have 2 - 8" Torque Tubes and 2 Heavy I-Beam Crossmembers
- Tandem Axle Trailers 37′ and Over in Total Length will have 3 - 8" Torque Tubes and 3 Heavy I-Beam Crossmembers
