Wilson Ranch Hand Livestock

Wilson Ranch Hand Gooseneck Livestock Trailer

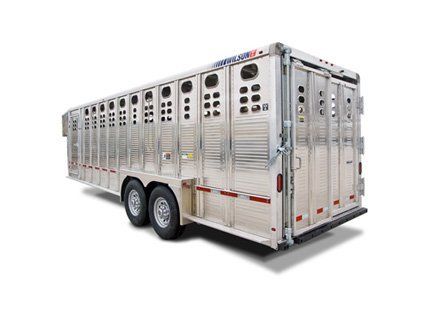

Titan Classic Gooseneck Livestock Trailer

Standard Features

  • Gross Vehicle Weight Rating: 16,000, lb. GVWR
  • Lengths: Available in 16 Ft., 18 Ft., 20 Ft., 22 Ft., and 24 Ft., plus 7 Ft gooseneck.
  • Width: 7′ inside widths.
  • Front End: Tapered.
  • Height: 6’8″ inside height. Coupler: 2-5/16″ diameter ball-type with adjustable coupler height.
  • Spare Tire Carrier: Curb side front drop.
  • Sides: Choice of side patterns C, J, N or BN.
  • Floor: .110″ thick aluminum tread plate with 3 longitudinal corrugations. Crossbars on 12″ centers.
  • Landing Gear: 12,000 lb. drop leg with high speed crank.
  • Roof: One-piece, stretched aluminum.
  • Rear End: Styles A or E.
  • Brakes: Accidental disconnect safety feature.
  • Axles: Two 7,000 lb. Rubber Torsion; EZ Lube Hubs.
  • Wheels: (4) 6.00 x 16 8-lug. Silver Modular Hub Caps.
  • Tires: (4) 235/85R16 Uniroyal Laredo 10-ply.
  • Side Door: (1) with cam latch, located on driver’s side.
  • Lights: Meets or exceeds I.C.C. standards.
  • Interior Lights:
    • (1) Interior light on 22′ models or shorter.
    • (2) Interior lights on 24′ models or longer.
  • Crowd Gates: Style A with outside release latch; punch pan.
  • Nose Gates: Styles A or D.
  • Header: Extruded Aluminum.
  • Rub Rail: Extruded Aluminum with horizontal protective lip.
  • Finish: Steel painted silver, all aluminum left natural.
Ranch Hand Available Options: Front Sealed Access Door on side or front, 2 Punched Vents in front drop, Bump Rail, Tie Loops, Tie Rail, Style – B Solid Rear, 100″ think flat tread plate with crossbars on 6″ centers, lettering, Gates Style A, B, C or K, Alcoa Aluminum Wheels, Extra tail lights, Tread plate fender deflector.
