Download Circular Cattle Working Facilty Brochure

Crowding Equipment

Circular Cattle Working Facility

The Solution System for your Cattle Working Needs
The TWI Circular Cattle Working Facility is designed to save today's cattleman time and effort while working cattle.
There is no need to hire extra help with this system. Your regular crew can handle the job easily, safely, and in less time than ever before.

Adjustable to Handle All Sizes

30' alley is designed to handle cattle of all sizes
The width adjustment ranges from 12" to 30"
Upgrade Option: EZ Adjust Alley width, 7 settings, will not freeze down
Panels are 5' tall & mounted 8" off ground level
Top bar is 5'8", prevents animal from jumping over panel
Sorting Cage- 3 way alley divider
8' straight alley to Loadout

Strong Modular Construction

Made of square tubing
Superior strength & construction qualities
Excellent rigidity & durability
Custom fit to any location, need, or budget

Download Ranchers Sweep Brochure

Crowding Equipment

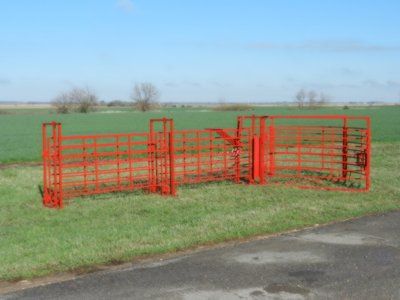

Ranchers Sweep

Adjustable to Handle All Sizes

30' alley is designed to handle cattle of all sizes
The width adjustment ranges from 12" to 30"
Upgrade Option: EZ Adjust Alley width, 7 settings, will not freeze down
Panels are 5' tall & mounted 8" off ground level
Top bar is 5'8", prevents animal from jumping over panel
Sorting Cage- 3 way alley divider
8' straight alley to Loadout

Strong Modular Construction

Made of square tubing
Superior strength & construction qualities
Excellent rigidity & durability
Custom fit to any location, need, or budget

Download Single Alley Brochure Download Twin Alley Brochure

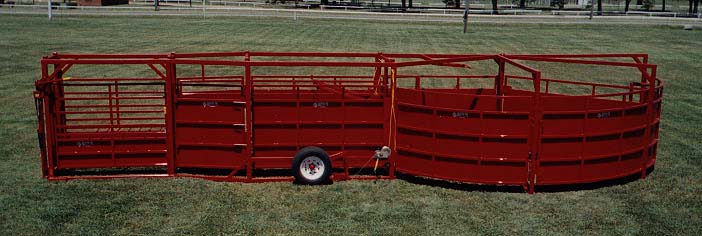

Portable Tub -- Twin Alley or Single Alley

Portable Tub Single Alley

This system uses a full 10’ crowd tub that folds to a legal road width. With up to 20’ of alleyway, the Portable Tub allows you the flexibility to put your working chute or loading chute in front.

The other option is to have 10’ of alleyway and the Titan West Combo Chute in front of the alley. This option includes the Palpation Cage directly behind the Working Chute. The Working Chute has all of the features of Titan West’s Combo Working Chute, complete with rumber floor and Chest Rest.

Both systems come with Titan West’s E-Z Adjustable Alley, allowing the alley to be adjusted with 15” to 30” with ease. The Titan West ”folding No-Back” is placed at the back of the alley. Two hand-operated winches allow you to go from working cattle to road ready in minutes.

Portable Tub Twin Alley

Features:

Open bar divider panel lets cattle see each other, reducing stress and encouraging tandem flow
Faster flow, more capacity, less time waiting, less prodding results in less stress
10 minute setup from transport to full operation
Folding no-back adjusts without chains resulting in less noise
Safety brake winch on each side
Access doors to the single alleyway from either side
Removable hitch
Crowd ahead feature in single alley
Same high quality features as our permanent tub
Unit weight 4,220 lbs. without headgate

OPTIONAL FEATURES

Head gate on front of single alley
Squeeze chute
Drop Gate
Manual neck extender

Download Loading Chute Brochure

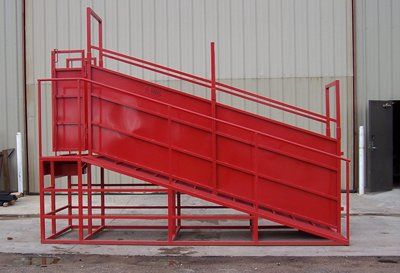

Loading Chutes

12' & 16' Portable Loading Chutes

Constructed of 2" Heavy-Duty Square Tubing
Sides are 1-1/2" Square Tubing, Covered with 48", 16-Guage Sheet Metal
Wooden Floor has Metal Cleats for Sure Footing - Adjustable to 4 Height Settings
Hitch Tongue Drops Down, Swings to Either Side & Removable
Hinged Adjustable Legs Designed for Ease of Operation - Pull Pins, Back Up & Chute Automatically Rises into Position
Transport Your Chute & Corral in One Unit - Carries 10 Portable Panels on Each Side
Portable Chute Options include: End gates, Rumber® Flooring, & Catwalks

14' Stationary Loading Chute
